什么是永磁起重器?

Magnetic lifter, also referred as?lifting magnet, is primarily used across several industries to hoist and move ferrous workpiece with flat or round surfaces. Magnetic lifter can be further divided to permanent magnetic lifter and electromagnetic lifter according to the source of magnetic power. Electromagnetic lifter is typically criticized for power consumption, serious heating, hysteresis phenomenon, large size, and maintain. Instead, permanent magnet lifter has compact structure, low operation difficulty, and no power consumption. The lifting capacity of permanent magnetic lifter is also determined by material, thickness, surface quality of load.

永磁起重器主圖-2025

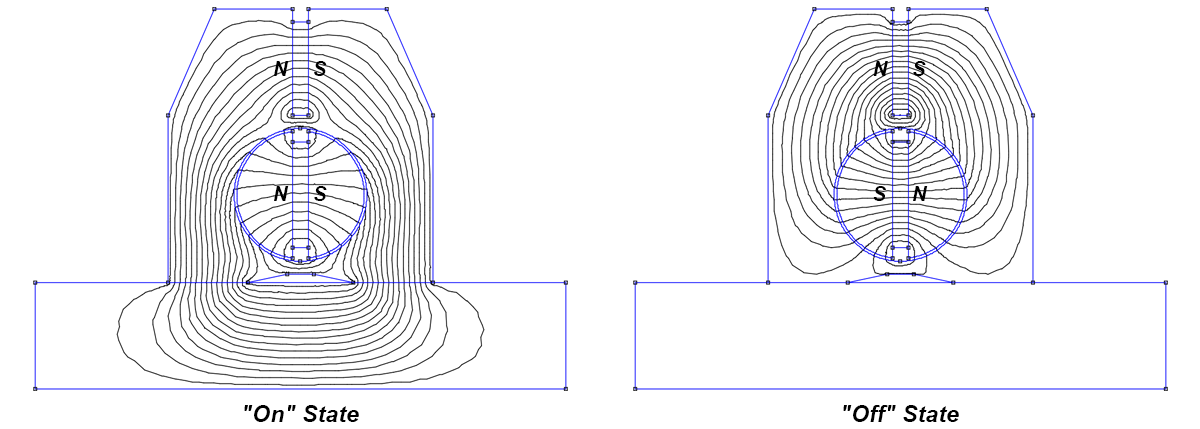

永磁起重器工作原理

Magnetic lifter, also referred as?lifting magnet, is primarily used across several industries to hoist and move ferrous workpiece with flat or round surfaces. Magnetic lifter can be further divided to permanent magnetic lifter and electromagnetic lifter according to the source of magnetic power. Electromagnetic lifter is typically criticized for power consumption, serious heating, hysteresis phenomenon, large size, and maintain. Instead, permanent magnet lifter has compact structure, low operation difficulty, and no power consumption. The lifting capacity of permanent magnetic lifter is also determined by material, thickness, surface quality of load.

永磁起重器工作原理

永磁起重器參數(shù)

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

永磁起重器-A型-2025
Model Max. Lifting capacity (kg) Max. Pull-off strength

(kg)

Dimension (mm) Operating temperature

(℃)

Net weight

(kg)

Flat Round W L H R
100A 100 50 350 64 92 67 148 <80 3
300A 300 150 1050 80.6 162 90 226 <80 7.5
500A 500 250 1750 101 199.5 118 220 <80 20
600A 600 300 2100 101 232.5 118 224 <80 23
1000A 1000 500 3500 151 270 164 321 <80 55.5
2000A 2000 1000 7000 190 380 212 445 <80 125
3000A 3000 1500 10500 230.5 497 244 505 <80 220
5000A 5000 2500 17500 430 541 206 816 <80 395
6000A 6000 3000 21000 430 621 206 816 <80 440
永磁起重器-C型-2025
Model Max. Lifting capacity (kg) Max. Pull-off strength

(kg)

Dimension (mm) Operating temperature

(℃)

Net weight

(kg)

Flat Round L B H R
100C 100 50 350 64 92 67 121 <80 3
150C 150 75 525 64 125 67 110 <80 4.5
200C 200 100 700 80.6 140 90 205 <80 6
300C 300 150 1050 80.6 162 90 205 <80 7.5
500C 500 250 1750 101 199.5 118 226 <80 20
600C 600 300 2100 101 232.5 118 226 <80 23
1000C 1000 500 3500 151 270 164 264 <80 55.5
2000C 2000 1000 7000 190 380 212 370 <80 125
3000C 3000 1500 10500 230.5 497 244 500 <80 220
永磁起重器-D型-2025
Model Max. Lifting capacity (kg) Max. Pull-off strength

(kg)

Dimension (mm) Operating temperature

(℃)

Net weight

(kg)

Flat Round W L H R
100D 100 50 350 64 92 67 136 <80 3
200D 200 100 700 80.6 140 90 171 <80 7.5
300D 300 150 1050 80.6 162 90 171 <80 7.5
500D 500 250 1750 101 199.5 118 226 <80 23
600D 600 300 2100 101 232.5 118 226 <80 23
1000D 1000 500 3500 151 270 164 264 <80 65
2000D 2000 1000 7000 190 380 212 370 <80 145
3000D 3000 1500 10500 230.5 497 244 500 <80 255
永磁起重器-E型-2025
Model Max. Lifting capacity (kg) Max. Pull-off strength

(kg)

Dimension (mm) Operating temperature

(℃)

Net weight

(kg)

Flat Round W L H R
100E 100 50 350 60 114 74 136 <80 3.5
125E 125 50 438 60 114 74 136 3.5
150E 150 75 525 60 147 70 136 <80 5
200E 200 100 700 80 146 85 136 <80 6
300E 300 150 1050 80 186 91 136 <80 10
500E 500 250 1750 100 230 110 150 <80 16
1000E 1000 500 3500 176 305 165 285 <80 58
2000E 2000 1000 7000 200 400 210 335 <80 117
3000E 3000 1500 10500 230 525 246 580 <80 220
永磁起重器-H型-2025
Model Max. Lifting capacity (kg) Max. Pull-off strength

(kg)

Dimension (mm) Operating temperature

(℃)

Net weight

(kg)

Flat Round W L H R
100H 100 50 350 75 90 50 148 <80 4
200H 200 100 700 110 125 55 148 <80 6.5
300H 300 150 1050 132 162 60 180 <80 9.5
600H 600 300 2100 163 233 74 185 <80 23
1000H 1000 500 3500 190 300 85 210 <80 58

永磁起重器關(guān)鍵考量因素

Magnetic lifter, also referred as?lifting magnet, is primarily used across several industries to hoist and move ferrous workpiece with flat or round surfaces. Magnetic lifter can be further divided to permanent magnetic lifter and electromagnetic lifter according to the source of magnetic power. Electromagnetic lifter is typically criticized for power consumption, serious heating, hysteresis phenomenon, large size, and maintain. Instead, permanent magnet lifter has compact structure, low operation difficulty, and no power consumption. The lifting capacity of permanent magnetic lifter is also determined by material, thickness, surface quality of load.

永磁起重器關(guān)鍵考量因素
